Laser welding machine It is widely used in electronic industry, automobile manufacturing, powder metallurgy and many other fields, including Fiber laser welding machine、Automatic laser welding machine Stainless steel laser welding machine, etc., but no matter what kind of laser welding machine, its structural parts are different. What are the components of the laser welding machine?

Part I: laser welding host

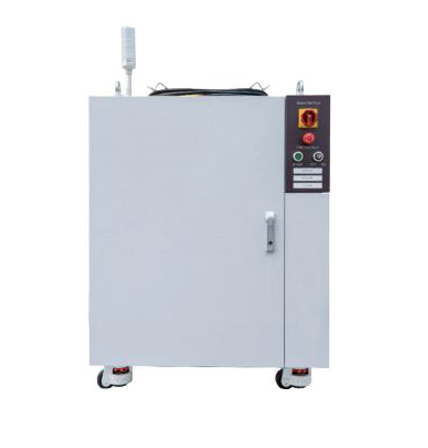

Laser welding machine mainly produces laser beam for welding, which is composed of power supply, laser generator, optical path part, control system and other main components.

What are the components of the laser welding machine

Part II: cooling system

The cooling system provides cooling function for the laser generator, which is generally equipped with 1-5 HP water circulation cooler.

Part 3: automatic worktable or motion system for laser welding

What are the components of the laser welding machine? Laser welding is realized by using this system. The laser beam moves according to the welding track according to the specific requirements to realize the function of laser automatic welding. Generally speaking, there is workpiece movement. The laser head is fixed, the laser head moves, the workpiece is fixed, or the laser head and the workpiece move at the same time. There are three forms of motion control. The whole system uses NC programming to write motion control program to control the motion of worktable according to requirements. The simplified programming system has the advantages of simple operation and rapid mastery without professional technology and educational background. In the BOT laser workbench system, such as manipulator motion system, two-dimensional and three-dimensional workbench, four-axis linkage working platform, gantry welding platform and cantilever platform, accurate welding motion control can be realized.

Part IV: tooling fixture

Generally speaking, in the process of laser welding, the laser welding fixture is mainly used to fix the welded parts and enable them to be loaded, unloaded and positioned repeatedly, which is convenient for laser automatic welding. The technical characteristics of fiber laser welding machine make it one of the essential equipment in laser welding production. Especially in batch production, whether the fixture design is in place will directly affect the production efficiency and yield. Botai laser has a large number of professional supporting designers, who design laser welding fixture solutions for customers and provide 3D performance display, so that customers can see the whole welding scheme at a glance.

Part V: observation system

General laser welding machines need to be equipped with an observation system, which can observe the workpiece in real time. It is used to accurately locate and inspect the welding effect in the welding process when compiling the welding procedure. Generally equipped with CCD display system or microscope.
